Paineis Fotovoltaicos

Caracteristicas Gerais dos Paineis Fotovoltaicos

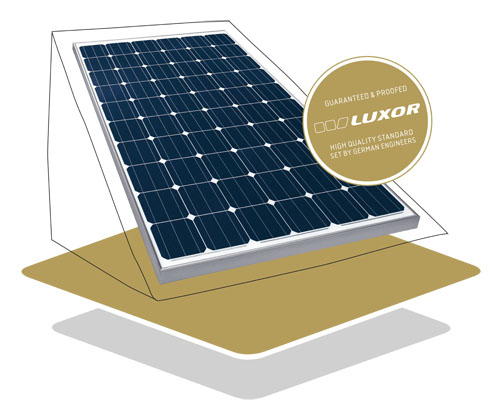

Specifications LX-240M / LX-245M / LX-250M
Number of cells (matrix) 6 x 10, three strings in a row
Cell size 156 mm x 156 mm
Module dimensions (L x W x H) 2 | Weight 1,640 mm x 992 mm x 45 mm | 21.0 kg
Front-side glass 3.2 mm hardened solar glass with low iron content
Frame stable, anodised aluminium frame in a hollow-section design
Socket plastic (PPO), IP65, ventilated and strain-relieved
Cable 4 mm 2 solar cable, cable length 1.0 m
Plug-in connection high-quality plug-in system, (IP65) MC4 or equivalent
Hail test (max. hailstorm) ∅ 45 mm | impact velocity 23 m/s
General technical approval classified according to DIN EN 13501-5 as B ROOF (t1)
